ACC-SFX600x

Engineered for Small Form Factor (SFF) enthusiasts, the ACC-SFX series power supply delivers reliable performance in a compact footprint. Optimized for Mini-ITX builds and space-constrained chassis, it combines high-efficiency power delivery with a stealthy aesthetic. Featuring black flat cables for effortless management and an intelligent cooling system.

Feature Overview
    • Tailor-made for Mini-ITX and SFF cases, maximizing internal airflow.
    • Active PFC + Comprehensive Protection: Equipped with OVP, OPP, SCP, and UVP for total system safety.
    • High-quality copper coils and capacitors for superior voltage stability.
    • Stealth Black Flat Cables: Flexible, low-profile cables that simplify cable routing in tight spaces.
Downloads

Safety Reminders

The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration.

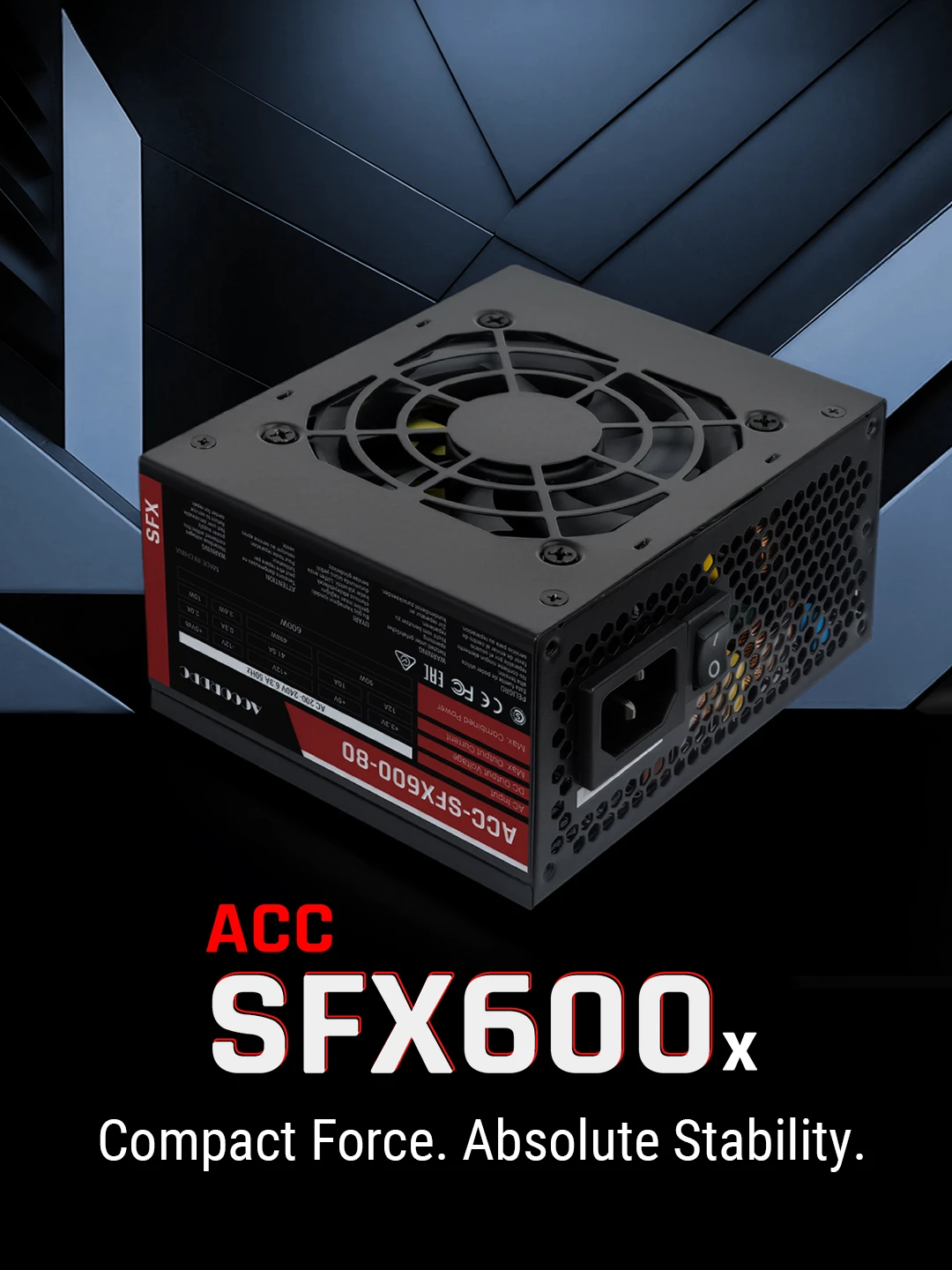

Compact Force. Absolute Stability.

Small Size, No Compromise on Power

The ACC-SFX series breaks the limitations of space. By integrating high-quality internal components into a standard SFX chassis, we provide gaming-grade stability for enthusiasts who demand high performance in the smallest possible volume.

Optimized for SFF Builds

The SFX form factor is the gold standard for compact PC building. The ACC-SFX series allows you to fit high-wattage power into Mini-ITX cases that cannot accommodate standard ATX units, giving you more room for cable management and improved thermal airflow.

Safety is our priority.

Built-in industrial-grade protections—OVP (Over Voltage), OPP (Over Power), SCP (Short Circuit), and UVP (Under Voltage)—work alongside Active PFC to ensure your high-end hardware is shielded from electrical irregularities.

Uncompromising Quality from

This robust internal architecture is built to tackle high-load gaming sessions, giving your CPU and GPU the consistent energy they need to push the limits.

Tech Specs

Model

ACC-SFX400-80
ACC-SFX500-80
ACC-SFX600-80

Input Voltage

200-240V

ATX

2.31

PFC

APFC

Protection

OVP OPP SCP UVP

Fan

8CM

Modular

Direct Cable

Cable Type

Black Flat Cable

EAN

ACC-SFX400-80 – 6973574161283
ACC-SFX500-80 – 6973574161115
ACC-SFX600-80 – 6973574161108

400W

400W Power Table

AC Input AC 200-240V 5A 50-60Hz
DC Output Voltage +3.3V +5V +12V -12V +5Vsb
Max. Output Current 12A 10A 25A 0.3A 2.0A
Max. Combined Power 90W 300W 3.6W 10W
400W

ACC-SFX400-80 CABLE LIST

Connector Type Connectors & Cable

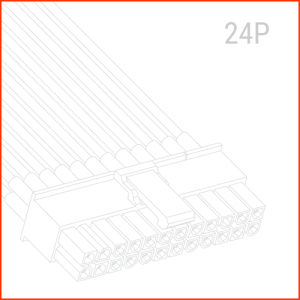

Motherboard 1 x 24P(455mm)

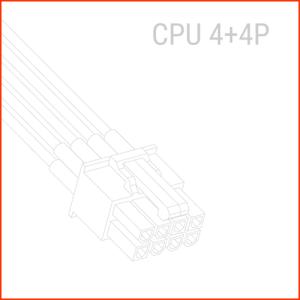

CPU 1 x 4+4P(470mm)

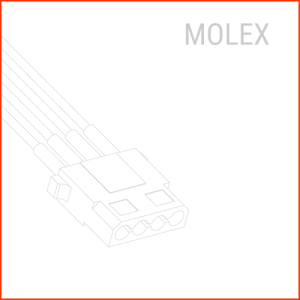

SATA/IDE 1 x PATA(390mm) + PATA(150mm)

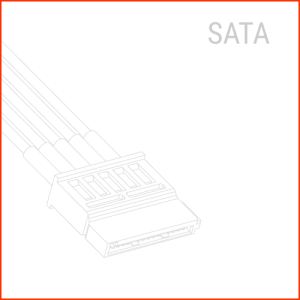

1 x SATA(392mm) + SATA(150mm) + SATA(150mm)

500W

500W Power Table

AC Input AC 200-240V 6.3A 50Hz
DC Output Voltage +3.3V +5V +12V -12V +5Vsb
Max. Output Current 12A 10A 33A 0.3A 2.0A
Max. Combined Power 90W 396W 3.6W 10W
500W

ACC-SFX500-80 CABLE LIST

Connector Type Connectors & Cable

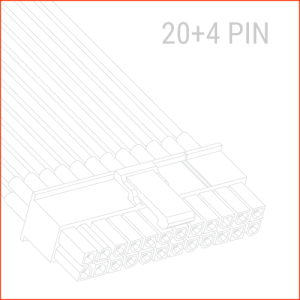

Motherboard 1 x 20+4P(460mm)
CPU 1 x 4+4P(460mm)

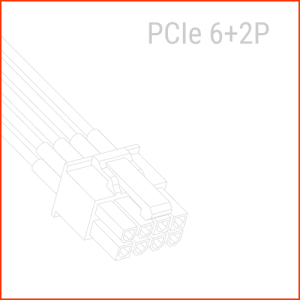

PCIe 1 x PCIe 6+2P(455mm)
SATA/IDE 1 x PATA(394mm) + PATA(150mm)
1 x SATA(394mm) + SATA(150mm) + SATA(150mm)

600W

600W Power Table

AC Input AC 200-240V 6.3A 50Hz
DC Output Voltage +3.3V +5V +12V -12V +5Vsb
Max. Output Current 12A 10A 41.5A 0.3A 2.0A
Max. Combined Power 90W 498W 3.6W 10W
600W

ACC-SFX600-80 CABLE LIST

Connector Type Connectors & Cable
Motherboard 1 x 20+4P(450mm)
CPU 1 x 4+4P(460mm) + 4+4P(150mm)
PCIe 1 x PCIe 6+2P(453mm) + PCIe 6+2P(150mm)
SATA/IDE 1 x PATA(380mm) + PATA(150mm)
1 x SATA(380mm) + SATA(150mm) + SATA(150mm)
